The Sauer 3-stage compressor demonstrates exceptional endurance even under the most difficult operating conditions. The 3-stage design lowers cylinder compression temperatures, and reduces the pressure ratio per cylinder. This feature promotes lower maintenance costs and improves unit longevity and reliability.
Unit of Measure

Financing

Approve Payments

Finance with Approve Payments

Quick Reference Specifications

Operating Pressure Range

580 to 1160 psi

Flow Rate

36.5 to 57.6 scfm

Required Power

21 to 33.5 hp

Stages/Cylinders

3/3

Gas/Medium

Air Nitrogen

Full Specifications

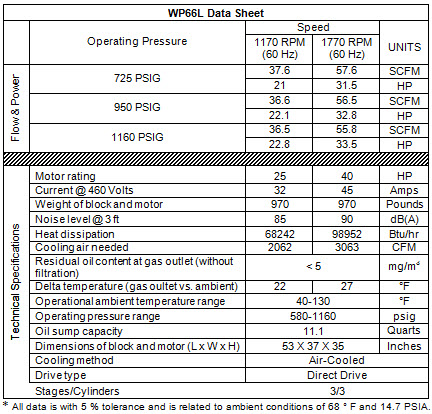

WP66L Full Specifications

Package Includes

N/A

  • Air intake and silencing filter
  • Intercoolers and aftercooler
  • Oil and water separators after the 1st, 2nd, and 3rd stages
  • Safety valve after each stage
  • 1st,

Optional Equipment

N/A

  • Final receiver packages with the necessary components supplied
  • Diesel motor driven
  • Modified for 50 Hz power supply
  • Modified for gas compression and higher inlet pressures (>4.5 psig)
  • Customized controls for user
