CF50 is a high performance 1" AODD pump with many unique features. The new CF50 utilizes a flow through fluid design that is more air efficient than traditional AODD pumps. Capable of distributing up to 53 gal/min. This equates to higher performance, versatility along with easy serviceability.
Unit of Measure

Financing

Approve Payments

 N/A Finance with Approve Payments

Specifications

Manufacturer

 N/A Balcrank

Brands

 N/A Balcrank

Model

 N/A CenterFlo CF50

Acceptable Mediums

 N/A Synthetic and Mineral based Motor Oil Used Anti-Freeze Used Oil Windshield Wash Solution

Air Inlet Size

 N/A 3/8 in

Air Inlet Thread Type

 N/A National Pipe Straight Mechanical (NPSM) Female

Fluid Inlet Port Size

 N/A 1 in

Fluid Inlet Port Thread Type

 N/A American National Standards Institute (ANSI) Flange B16.5 150 lb

Fluid Outlet Port Size

 N/A 1 in

Fluid Outlet Port Thread Type

 N/A American National Standards Institute (ANSI) Flange B16.5 150 lb

Maximum Free Flow

 N/A 53 gpm200 L/min

Air Pressure Range

 N/A 22 to 115 psi1.5 to 8 bar

Solids in Suspension

 N/A 1/8 in3.2 mm

Wetted Materials

 N/A American Society for Testing and Materials (ASTM) Fluoroelastomer (FKM) Hytrel® Polypropylene PTFE (Teflon™) Stainless Steel

Recommended Fluids

 N/A Windshield Wash Solution

Recommended Applications

 N/A Evacuation Fluid Dispensing Transfer

Service Bulletin

 N/A SB 1147

Central Body and Air Chambers Material

 N/A Polypropylene

Fluid Ports / Location Multiport Manifolds:Central and Lateral

 N/A National Pipe Tapered (NPT) Threaded Lateral Ports

Fluid Chambers and Manifolds Material

 N/A Polypropylene

Hardware Bolts and Inserts Material

 N/A Stainless Steel

Valve Seats Material

 N/A Santoprene

Valve Balls Material

 N/A Santoprene

Diaphragms Type and Material

 N/A Santoprene

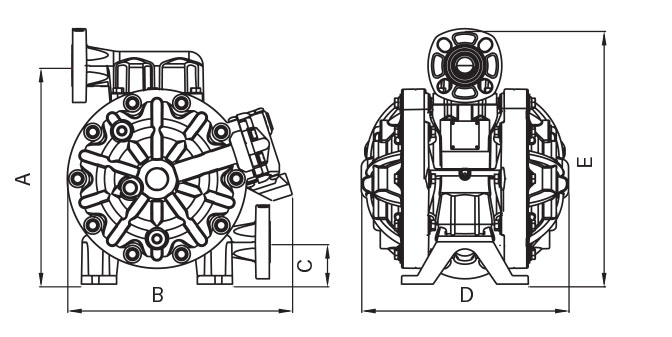

Dimensions

Dimension A

 N/A 12.25 in311 mm

Dimension B

 N/A 12.59 in320 mm

Dimension C

 N/A 2.33 in60 mm

Dimension D

 N/A 11.66 in295 mm

Dimension E

 N/A 14.33 in364 mm

Features

N/A

  • High performance; increased flow rate with minimal air consumption
  • Dependability; non-icing air motor
  • Versatile; inlet and outlet ports can be oriented to fit the installation/application
  • Ease of service; diaphragms and air motor can be serviced with the pump installed without removal

Market Served

N/A

  • Car and truck dealers
  • Mining and construction
  • Fleets
  • Railroad and mass transit
  • In-plant transfer
  • Lube trucks

Note

N/A Balcrank does not recommend pumping windshield wash or any other fluid below 100° flash point.

Contact Balcrank for additional information.

Product specifications are subject to change without prior notice.

Pressure relief valve kit 3120-231 for this pump is recommended and not included.

1120-038 includes flange kit for pump mounting.
