The Pivot Series combines a universal design with a unique frictionless Pivot-Shaft Air Valve to provide maximum performance and efficiency. This pump has been designed for simplified cleaning and maintenance and all Pivot Series pumps are designed for maximum fluid flow, and reduced air consumption.

The UP10 Pivot Series pump transfers fluid up to 53 gal/min. Combining a conventional flow design with a special pivoting air valve for increased reliability. This pump can be used as a stand-alone pump for transfer or as a system pump for fluid distribution.
Unit of Measure

Financing

Approve Payments

 N/A Finance with Approve Payments

Specifications

Manufacturer

 N/A Balcrank

Brands

 N/A Balcrank

Model

 N/A Pivot Series UP10

Acceptable Mediums

 N/A Anti-Freeze (Glycol) Synthetic and Mineral Oil Used Oil Windshield Wash Solution

Air Inlet Size

 N/A 1/2 in

Air Inlet Thread Type

 N/A National Pipe Thread (NPT)

Fluid Inlet Port Size

 N/A 1 in

Fluid Inlet Port Thread Type

 N/A National Pipe Thread (NPT)

Fluid Outlet Port Size

 N/A 1 in

Fluid Outlet Port Thread Type

 N/A National Pipe Thread (NPT)

Maximum Free Flow

 N/A 53 gpm200 L/min

Air Pressure Range

 N/A 20 to 120 psi1.5 to 8 bar

Solids in Suspension

 N/A 1/4 in6.4 mm

Wetted Materials

 N/A Refer to materials table at the bottom of the page.

Recommended Fluids

 N/A Anti-Freeze (Glycol) Hydraulic Oil Lubricants Used Fluids Used Oil Windshield Wash Solution

Recommended Applications

 N/A De-Wattering and Fluid Evacuation Medium to Large Volume Transfer

Service Bulletin

 N/A SB 1156

Central Body and Air Chambers Material

 N/A B= Polypropylene

Fluid Ports / Location Multiport Manifolds:Central and Lateral

 N/A N= National Pipe Tapered (NPT) Threaded Ports- Lateral

Fluid Chambers and Manifolds Material

 N/A P= Polypropylene

Hardware Bolts and Inserts Material

 N/A S= Stainless Steel

Valve Seats Material

 N/A P= Polypropylene

Valve Balls Material

 N/A M= Santoprene

Diaphragms Type and Material

 N/A A= Santoprene

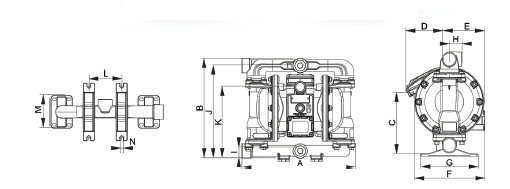

Dimensions

Dimension A

 N/A 13.70 in348 mm

Dimension B

 N/A 12.48 in317 mm

Dimension C

 N/A 8.43 in214 mm

Dimension D

 N/A 5.16 in131 mm

Dimension E

 N/A 4.17 in106 mm

Dimension F

 N/A 8.23 in209 mm

Dimension G

 N/A 6.97 in177 mm

Dimension H

 N/A 1.54 in39 mm

Dimension I

 N/A 1.26 in32 mm

Dimension J

 N/A 11.61 in295 mm

Dimension K

 N/A 9.33 in237 mm

Dimension L

 N/A 4.02 in102 mm

Dimension M

 N/A 6.26 in159 mm

Dimension N

 N/A 0.39 in10 mm

Features

N/A

  • High performance; increased flow rate with minimal air consumption
  • Dependability; non-icing air motor
  • Versatile; inlet and outlet ports can be oriented to fit the installation/application
  • Ease of service; diaphragms and air motor can be serviced with the pump installed without removal

Market Served

N/A

  • Car and Truck dealerships
  • Mining and Construction
  • Fleets
  • Railroad and mass transit
  • In plant transfer
  • Lube Trucks
  • Agriculture / Farm Implement

Note

N/A Balcrank does not recommend pumping windshield wash or any other fluid below 100º flash point.

Contact Balcrank for additional information.

Product specifications are subject to change without prior notice
