  • Precise dew point measurement down to -112 ºF
  • Quick response time
  • 3.5" graphic display/easy operation via touch screen
  • Integrated data logger for storage of the measured values
  • USB interface for reading out via USB stick
Unit of Measure

Financing

Approve Payments

 N/A Finance with Approve Payments

Specifications

Model

 N/A DP 500

Touch Screen Display Size

 N/A 3.5 in

Measuring Range

 N/A 112 to 122 ºF-4 to 158 ºF

Relative Humidity

 N/A 0 to 100 %

Accuracy (±) at 14 to 122 Degree Fahrenheit (ºF) Temperature (Atmospheric Pressure)

 N/A 0.5 ºF
Typical Accuracy (±) (Atmospheric Pressure)1 N/A 2 ºF

Moisture Parameters

 N/A % RH g/kg lb/CF mg/m³ ºFtd atm ppm V/V

Standard Pressure Range

 N/A -1 to 725 psi

Pressure Range (Special Version)

 N/A -1 to 5026 psi

Interfaces

 N/A Universal Serial Bus (USB)

Data Logger

 N/A 16 GB SD Memory Card (100 Million Values)

Direct Current (DC) Output Voltage

 N/A 24 V

Direct Current (DC) Output Voltage Tolerance (±)

 N/A 10 %

Output Current in Continuous Operation

 N/A 120 mA

Power Supply

 N/A Internal rechargeable Li-Ion batteries, approx. 12 h continuous operation, 4 h charging time

Screw-In Thread

 N/A 1/2 in. National Pipe Thread (NPT) G 1/2 in. Stainless Steel

Ambient Temperature

 N/A 14 to 122 ºF

Electromagnetic Compatibility (EMC)

 N/A DIN EN 61326-1

Applications

Applications

 N/A
  • Compressed air: Examination of refrigeration, membrane, adsorption dryers
  • Technical gases: Residual moisture measurement in gases such as N2, O2 etc.
  • Plastics industry: Examination of granulate dryers

Special Features

Special Features

 N/A
  • Calculates all necessary moisture parameters like g/m³, mg/m³, ppm, V/V, g/kg, Ctd, atm
  • 2nd freely assignable sensor input for third-party sensors (only DP 510)
  • International: up to 8 languages selectable

Everything at a glance

Everything at a glance

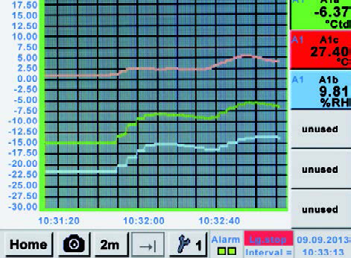

 N/A Measurement curves are displayed graphically, so the operator sees at a glance the behavior of the dryer since the start of the measurement.

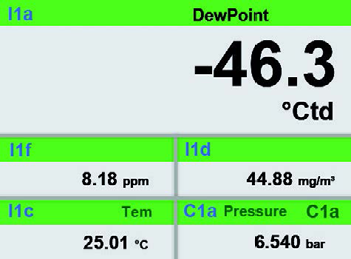

All physical parameters of the humidity measurement are calculated automatically.

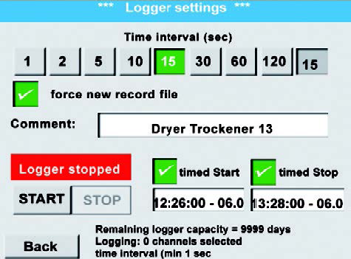

Up to 100 million measured values can be stored. Each measurement can be stored with a comment, e.g. measuring site name. The time interval can be freely set.

Consisting of

Consisting of

 N/A Item # - 0560 0500
Description - Portable dew point meter DP 500 for compressed air and gases

Item # - 0699 4490
Description - Mobile measuring chamber up to 232 psi

Item # - 0554 0003
Description - Diffusion-tight PTFE hose with quick coupling, length 3.2 ft.

Item # - 0554 0009
Description - Power supply for DP 500/DP 510

Item # - 0554 0002
Description - Control and calibration set 11.3% RH

Item # - 0530 1101
Description - Quick-lock coupling

Item # - 0699 2500
Description - Dry container for CS dew point sensors

Item # - 0554 6500
Description - Transportation case (small) for DP 500

Options

Options

 N/A 0554 8040, Data Evaluation Graphically and in Table Form 0560 0501, DP 500 Portable Dew Point Meter 0560 0512, DP 510 Portable Dew Point Meter 0699 3396, Precision Calibration 0699 3490, Measuring Chamber for Granulate Dryers with Minimum Over Pressure 0699 3590, High Pressure Measuring Chamber 0699 3690, Measuring Chamber for Atmospheric Dew Point 0700 7710, Additional Calibration Z500 5106, Totalizer Function for Analog Signals Z500 5107, Mathematics Calculation Function
  • 1 Further Range
