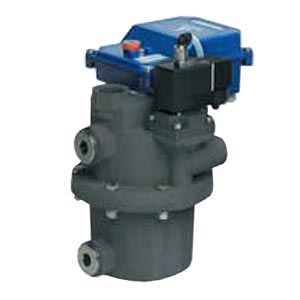

BEKOMAT® EX Condensate Drains for explosive atmospheres

  • Automatic zero loss drain
  • Standard Viton® diaphragm
  • Min. / max. operating temperature: 33 °F / 140 °F
  • Standard voltage: 12 VDC
  • NEMA
Unit of Measure

Financing

Approve Payments

 Finance with Approve Payments

Specifications

Compressor Capacity

 4,500 cfm

Dryer Capacity

 9,000 cfm

Filter Capacity

 45,000 cfm

Maximum Working Pressure

 232 psi

Min Working Pressure

 12 psi

Max Working Temperature

 140ºF

Min Working Temperature

 33ºF

Inlet/Outlet Connections

 3 x 3/4"

Housing Material

 Aluminum

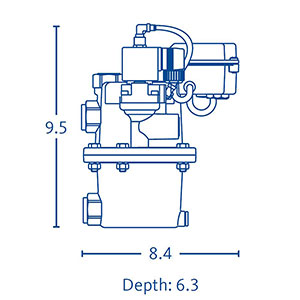

Dimension A

 9.5 in

Dimension B

 8.4 in

Weight

 7.5 lbs
