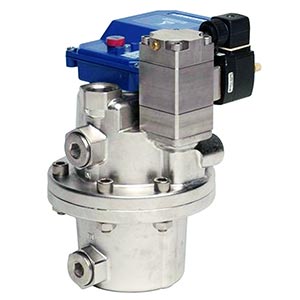

BEKOMAT® E Series Condensate Drains for high pressure systems
- Automatic zero loss drain
- Standard Viton® diaphragm
- Min. / max. operating temperature: 33 °F / 140 °F
- Standard voltage: 115 VAC
- Optional voltages: 24 VAC/DC, 48 VAC, 230 VAC 50/60 Hz
Unit of Measure
Specifications
Compressor Capacity |
N/A 4,500 cfm |
Dryer Capacity |
N/A 9,000 cfm |
Filter Capacity |
N/A 45,000 cfm |
Maximum Working Pressure |
N/A 360 psi |
Min Working Pressure |
N/A 12 psi |
Max Working Temperature |
N/A 140ºF |
Min Working Temperature |
N/A 33ºF |
Inlet/Outlet Connections |
N/A 3 x 3/4" |
Housing Material |
N/A Stainless steel |

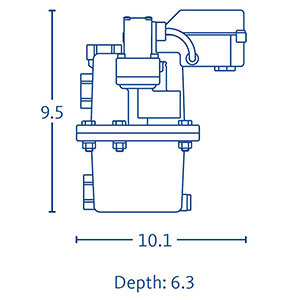

Dimension A |
N/A 9.5 in |
Dimension B |
N/A 10.1 in |
Weight |
N/A 7.5 lbs |
