Specifications

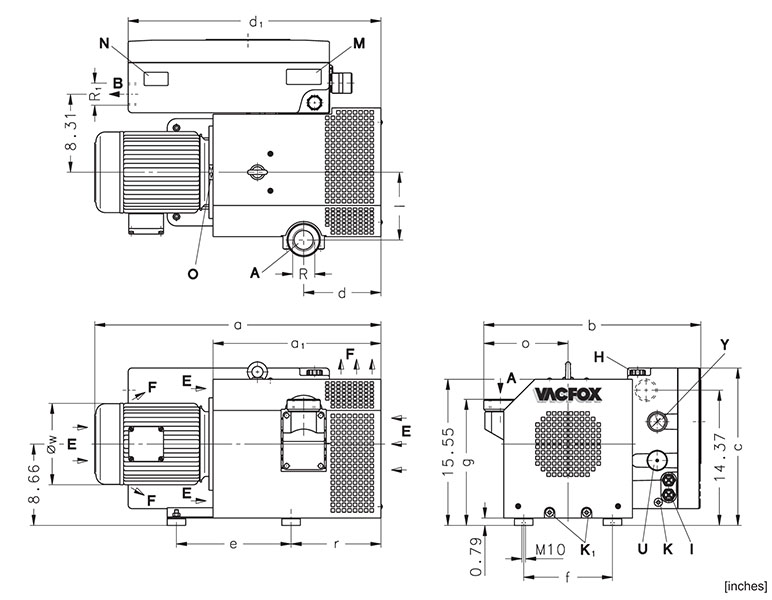

Dimension a at 50 Hz

 30.51 in

Dimension a at 60 Hz

 34.42 in

Dimension a1 at 50 Hz

 17.91 in

Dimension a1 at 60 Hz

 18.86 in

Dimension b

 22.99 in

Dimension c

 16.73 in

Dimension d

 8.27 in

Dimension d1

 27.17 in

Dimension e

 12.2 in

Dimension f

 9.45 in

Dimension G

 13.43 in

Dimension l

 7.20 in

Dimension O

 8.86 in

Dimension r

 9.65 in

Diameter w at 50 Hz

 8.66 in

Diameter w at 60 Hz

 10.34 in

Dimension R

 2 in

Dimension R1

 2 in

Thread Type for R

 NPT

Thread Type for R1

 BSP

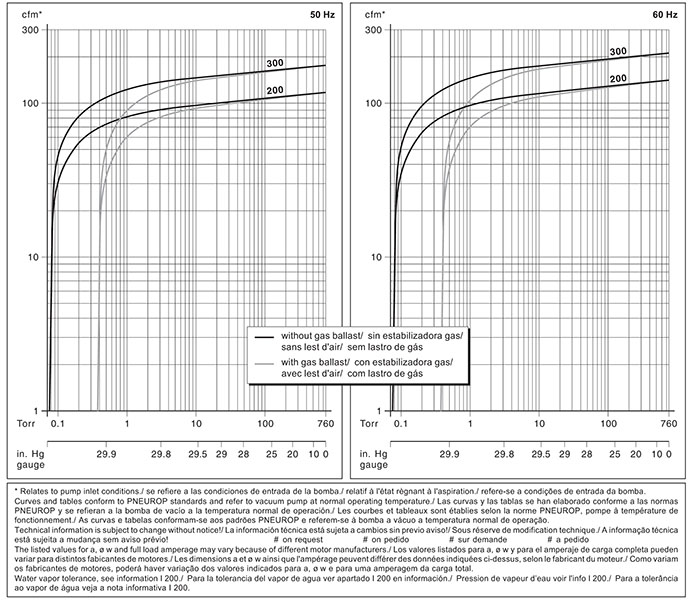

Capacity at 50 Hz

 118 cfm

Capacity at 60 Hz

 141 cfm

Ultimate Partial Vacuum Measured with LN2 Trapped McLeod Gauge

 0.075 Torr29.92 inHg

Motor Voltage at 50 Hz

 230 V400 V

Motor Voltage at 60 Hz

 208 to 230 V460 V

Motor Tolerance

 ±10 %

Motor Rating at 50 Hz

 4.0 kW

Motor Rating at 60 Hz

 7.5 hp

Full Load Amperage at 50 Hz

 9.0 A15.6 A

Full Load Amperage at 60 Hz

 10 A20 to 21.5 A

Speed at 50 Hz

 1450 rpm

Speed at 60 Hz

 1740 rpm

Average Noise Level at 50 Hz

 69 dBA

Average Noise Level at 60 Hz

 73 dBA

Weight at 50 Hz

 318 lb

Weight at 60 Hz

 369 lb

Approximate Oil Capacity

 6 qt

Non Return Valve (ZRK)

 50 (03)

Vacuum Tight Dust Separator (ZFP)

 216 (01)

Vacuum Tight Suction Filter (ZVF)

 50 (53)

Brands

 VACFOX

Note

N/A Relates to pump inlet conditions

Curves and tables refer to vacuum pump at normal operating temperature.

Technical information is subject to change without notice.

The listed values for a, ø w and full load amperage may vary because of different motor manufacturers.
