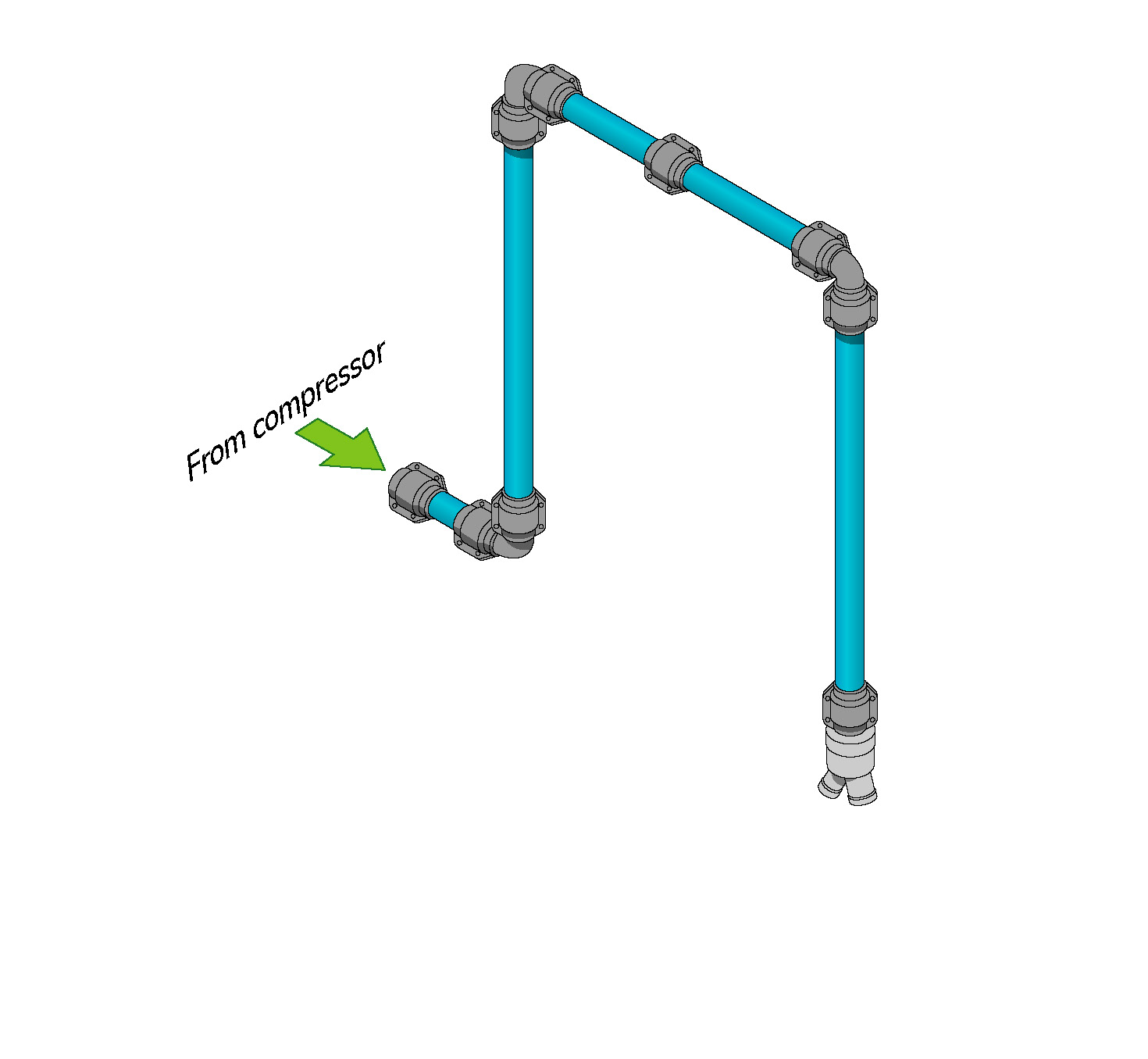

Complete 3/4" aluminum pipe and fitting system with (1) station. Each station contains two 1/2" FNPT ports and a 1/4" drain valve.
QTY DESCRIPTION
6 7’ lengths of 1” blue aluminum pipe
3 5’ lengths of 1” blue aluminum pipe
4 3/4” union connectors
10 3/4” pipe mounting clips
3 3/4” elbow connectors
1 3/4” outlet station with two 1/2” female NPT ports
1 3/4” pipe to 3/4” male NPT adapter (for compressor connection)
Unit of Measure
Specifications
Kit Type |
N/A 1-Station System |
FNPT Port Size |
N/A 1/2 in |
Drain Valve Size |
N/A 1/4 in |
Pipe Size |
N/A 20 mm |
Applications |
N/A Garage |
Packaging
Packaging |
N/A
Fittings will ship in a Garage Pipe labeled box. Pipe lengths will ship in 8' long cardboard tubes. The 57' system will consist of (6) sticks of 7' long pipe and (3) sticks of 5' long pipe. |
Kit Includes
Kit Includes |
N/A
1000 - 3/4 in. Blue Aluminum Pipe - Quantity 3 1002 - 3/4 in. Union - Quantity 4 1003 - 3/4 in. Elbow - Quantity 3 1117 - 3/4 in. Pipe to 3/4 in. Male NPT Adapter - Quantity 1 1023 - Wall Outlet Station with two 1/2 in. Female NPT Ports - Quantity 1 1022 - 3/4 in. Pipe Mounting Clips - Quantity 10 |
