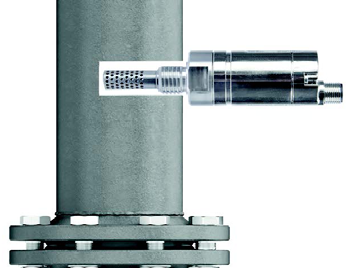

FO 510 for moisture measurement in technical oils
Unit of Measure

Financing

Approve Payments

 N/A Finance with Approve Payments

Specifications

Humidity Measuring Range

 N/A 0 to 1 aw

Accuracy (±) at 73 Degree Fahrenheit (ºF) Temperature and 0 to 0.9 Water Activity (aw) Humidity Measuring Range

 N/A 0.02 aw

Typical Accuracy (±) at 73 Degree Fahrenheit (ºF) Temperature and 0.9 to 1 Water Activity (aw) Humidity Measuring Range

 N/A 0.03 aw

Temperature Measuring Range

 N/A 0 to 257 ºF

Temperature Accuracy

 N/A +0.3 ºC

Oil Temperature

 N/A -20 to +257 ºF

Ambient Temperature

 N/A -20 to +158 ºF

Pressure Range

 N/A Up to 4351 psi

Interfaces

 N/A 2 x Analogue Output 4 to 20 mA (3-Wire-Technology) Modbus RTU (RS 485)

Direct Current (DC) Supply Voltage

 N/A 10 to 36 V24 V

Protection Class

 N/A IP 66

Electromagnetic Compatibility (EMC)

 N/A In According with DIN EN 61326-1

Material Thread

 N/A 1.4404

Material Perforated Cap

 N/A 1.4301

Connection

 N/A M12

Number of Connection Pins

 N/A 8

Special Advantages

Special Advantages

 N/A
  • Fast response time
  • Highly accurate measurement of water activity (aw), as well as process temperature. Measurement is independent of the respective oil type or age
  • Calculation of the absolute water content (PPM), possible for transformer oil
  • Two configurable analogue outputs, as well as Modbus-RTU (RS 485) interface available

Typical Applications

Typical Applications

 N/A Measurement of residual moisture in:
  • Transformer oil
  • Engine oil
  • Lubricating oil
  • Hydraulic oil
  • Diesel fuels
