Features


Ports

2 - 1" sight glass ports with sight glasses (low/high level)

1" upper chamber drain port

1/4" plugged differential ports on inlet and outlet

1/2" plugged equalization port for use with pneumatic drain system
Unit of Measure

Financing

Approve Payments

 N/A Finance with Approve Payments

Specifications

Airflow

 N/A 2900 scfm

Micron Size

 N/A 5 µm

Inlet and Outlet Connections

 N/A 10 in

Connection Type

 N/A American National Standards Institute (ANSI) FLG PATTERN

Capacity

 N/A 40 gal

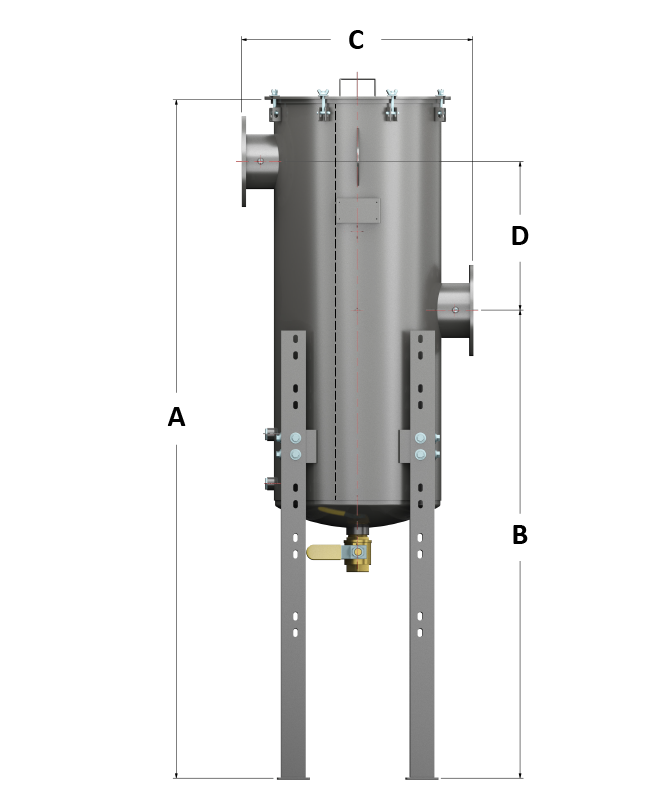

Dimension A

 N/A 93.25 in

Dimension B

 N/A 63.75 in

Dimension C

 N/A 40.00 in

Dimension D

 N/A 17 in

Replacement Element Kit

 N/A 385

Additional Information

N/A Legs

6 position adjustable legs

Predrilled to accept pneumatic drain system option

Predrilled floor anchor holes

Legs ship in lowest position
