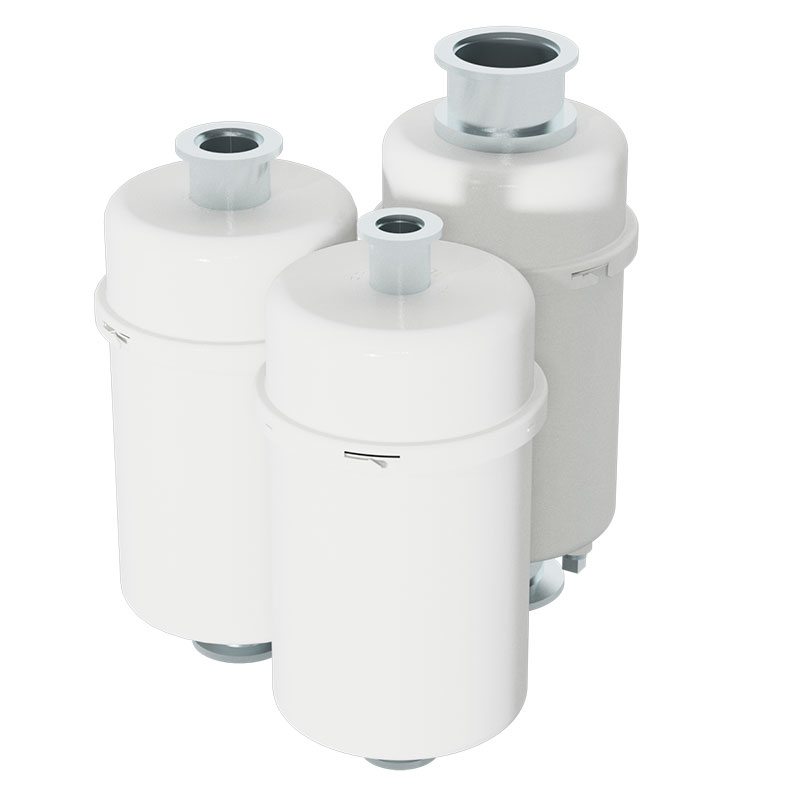

Solberg Oil Mist exhaust filters capture oil fog, mist, or smoke from the discharge of vacuum pumps.
The EE and EF series designed for laboratory and medical vacuum pumps, these compact oil mist eliminators offer the option of a back pressure relief valve to evacuate collected contaminates.
The DSV and DEE series remove both oil mist and undesirable odors from the pump’s exhaust.
Unit of Measure

Financing

Approve Payments

 N/A Finance with Approve Payments

Specifications

Airflow

 N/A 12 scfm

Micron Size

 N/A 0.3 µm

Inlet and Outlet Connection Size

 N/A NW25

Connection Type

 N/A International Organization for Standardization (ISO) Flange

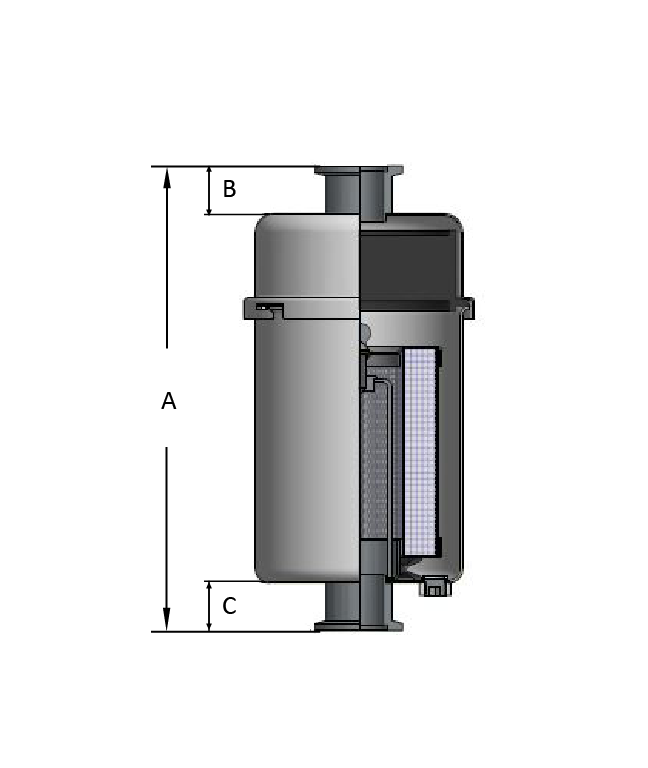

Dimension A

 N/A 8.38 in

Dimension B

 N/A 0.87 in

Dimension C

 N/A 0.87 in

Dimension D

 N/A 4 in

Media

 N/A Coalescing

Replacement Element Kit

 N/A PSG725

Features

 N/A
  • Corrosive resistant white powder coat carbon steel
  • Primary filter captures and coalesces oil entrained in air stream
  • Activated carbon element removes offensive odors generated by the process
  • Convenient access drain port
  • Back pressure valve designed to release pressure at 7.35 psig. (0.5 bar) differential for pump safety (DEE Series)
