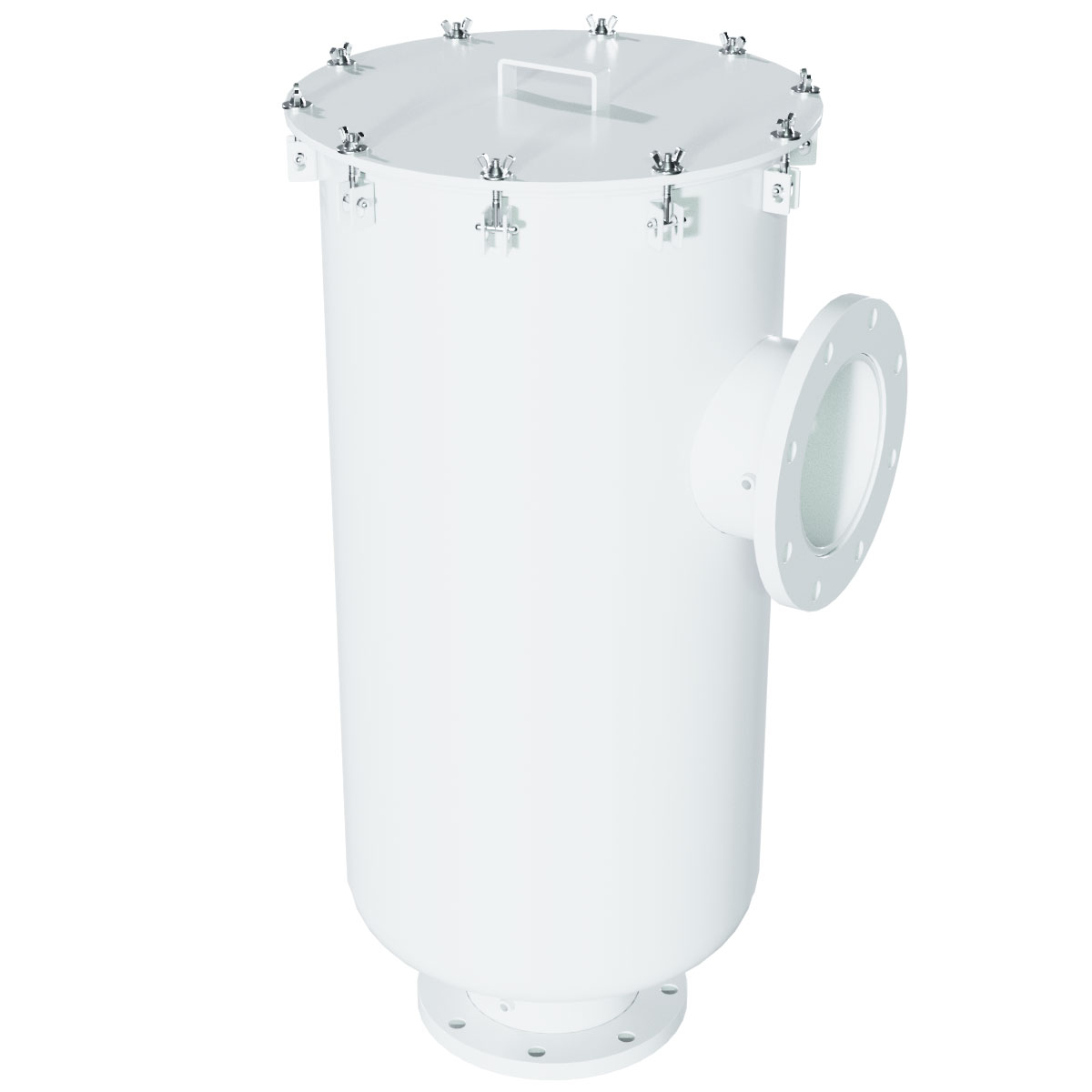

Solberg Oil Mist exhaust filters capture oil fog, mist, or smoke from the discharge of vacuum pumps.
The EE and EF series designed for laboratory and medical vacuum pumps, these compact oil mist eliminators offer the option of a back pressure relief valve to evacuate collected contaminates.
The DSV and DEE series remove both oil mist and undesirable odors from the pump’s exhaust.
Unit of Measure

Financing

Approve Payments

 N/A Finance with Approve Payments

Specifications

Airflow

 N/A 1800 scfm

Micron Size

 N/A 0.3 µm

Inlet and Outlet Connection Size

 N/A 8 in

Connection Type

 N/A American National Standards Institute (ANSI) FLG PATTERN

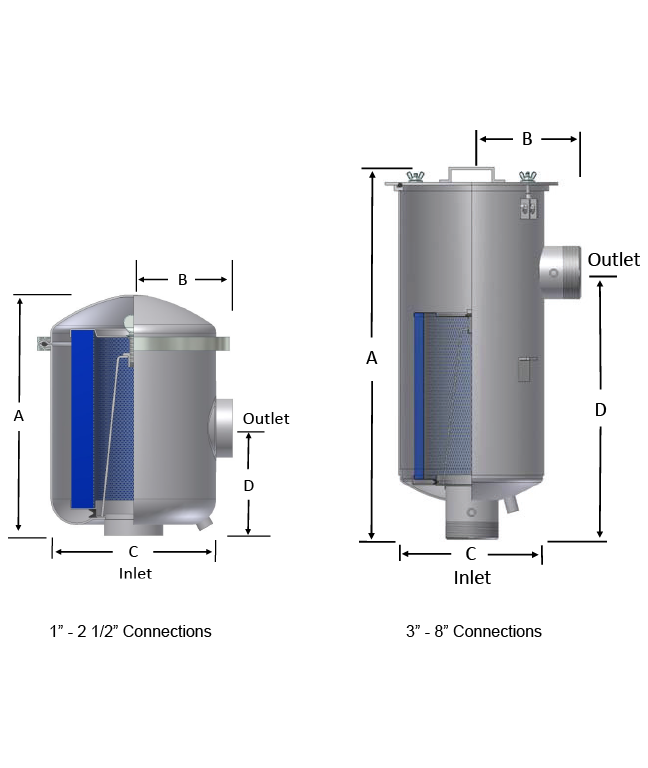

Dimension A

 N/A 38.81 in

Dimension B

 N/A 14 in

Dimension C

 N/A 21 in

Dimension D

 N/A 25.5 in

Media

 N/A Coalescing

Replacement Element Kit

 N/A PSG476

Features

 N/A
  • Captures oil fog, mist, or aerosol from exhaust of oil sealed vacuum pumps
  • Waste oil can be recycled
  • Pleated filter element provides increased surface area for low back pressure separation of ultra-fine oil mists
  • Seamless drawn housings (1" - 2.5" connections)
  • O-ring sealed housings
  • Corrosive resistant white powder coat carbon steel
  • Discharge baffle (1" - 2.5" connections)
  • 1/4” NPSC drain tap
