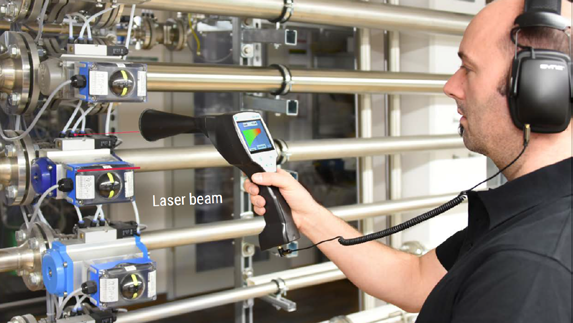

If pressurized gases escape through leaks in pipe systems (e.g. leaky screw connections, pipe corrosion etc.), noises are generated in the ultrasonic range. With the LD 450, even the smallest leakages, which cannot be heard by the human ear and which are not visible due to their size, can be detected even from distances of several meters. The LD 450 transforms the ultrasound, which is inaudible to humans, into audible frequencies. With the comfortable, sound-proof headset, these noises can be heard even in extremely noisy environments. The LD 450 leak detector is a further improvement on the proven predecessor models (LD 300 and LD 400) and impresses with its significantly refined sensor technology and its improved support in the tracing of leaks. With the help of the integrated laser pointer, which serves for target heading, the leak can be localized more accurately.
Unit of Measure

Specifications

Operating Frequency

 N/A 40 kHz

Operating Frequency Tolerance (±)

 N/A 2 kHz

Connections

 N/A 3.5 Millimeter (mm) Stereo Jack for Headset. Power Supply Socket For Connecting An External Charger

Laser Wavelength

 N/A 630 to 660 nm

Laser Output Power

 N/A < 1 mW

Laser Class

 N/A 2

Continuous Operation Operating Time

 N/A > 10 H

Operating Temperature

 N/A -5 to +50 ºC

Storage Temperature

 N/A -20 to 60 ºC

Applications

Applications

 N/A
  • Leak detection on
  • compressed air, gas, and vacuum systems
  • Door seals
  • LD 450 with focus tube and focus tip for exact detection.
  • Sound-proof headset:Enables leak detection in an extremely loud environment

Special Features

Special Features

 N/A
  • Robustness and low weight ensure fatigue-free use in industrial environments
  • Improved detection of leakages with the acoustic trumpet
  • Modern Li-Ion battery with high capacity, external charger
  • Minimum operating time 10 h
  • Easy operation via membrane keypad
  • Adjustable sensitivity

Includes

Includes

 N/A Item # - 0560 0204
Description - LD 450 Leak Detector for Compressed Air Systems

Item # - 0554 0106
Description - Transport Case

Item # - 0554 0104
Description - Sound-Proof Headset

Item # - 0530 0104
Description - Focus Tube with Focus Tip

Item # - 0554 0009
Description - Plug-In Power Supply

Item # - 0530 0109
Description - Acoustic Trumpet

Additional Information

Additional Information

 N/A Through the use of a specially designed acoustic trumpet, a better focusing of the sound waves is achieved. This acoustic trumpet acts like a directional microphone, focusing ultrasonic waves to improve acoustic performance. Due to the special design of the acoustic trum-pet, the use of the laser pointer is not hindered.

Leak test: An easy to handle ultrasonic transmitter is available for detecting leaks in systems that are not under pressure. The transmitter is positioned so that the sound can enter the pipe system.

The ultrasonic signal penetrates the smallest openings, which can then be detected with the LD 450.

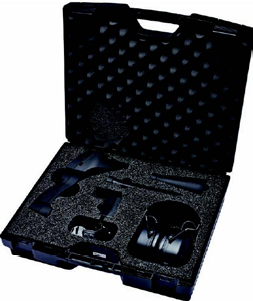

LD 450 is available either as standalone device or in a complete set. The set includes a robust impact-resistant transport case which contains all necessary components and accessories.
