Visualizes the leaks directly in the image
Unit of Measure

Specifications

Operating Frequency

 N/A 40 kHz

Operating Frequency Tolerance (±)

 N/A 2 kHz

Connections

 N/A 3.5 Millimeter (mm) Stereo Jack for Headset. Power Supply Socket For Connecting An External Charger

Laser Wavelength

 N/A 630 to 660 nm

Laser Output Power

 N/A < 1 mW

Laser Class

 N/A 2

Touch Screen Display Size

 N/A 3.5 in

Interfaces

 N/A USB

Data Logger

 N/A 16 GB SD Memory Card (100 Million Values)

Battery

 N/A Internal Rechargeable Li-Ion

Approximate Continuous Operation

 N/A 9 H

Charging Time

 N/A 4 H

Direct Current (DC) Output Voltage

 N/A 24 V

Direct Current (DC) Output Voltage Tolerance (±)

 N/A 10 %

Output Current in Continuous Operation

 N/A 120 mA

Operating Temperature

 N/A -41 to 122 ºF

Electromagnetic Compatibility (EMC)

 N/A In According with DIN EN 61326-1

Auto Level

 N/A Automatically adapts the sensitivity to the environment and reliably eliminates ambient noise

Sensitivity

 N/A Minimum: 0.1 l/min at 6 bar, 5 m distance, approx. Euro 1/year of compressed air costs

Weight without Headset

 N/A 1.19 lb

Display and Functions

Display and Functions

 N/A The UltraCam LD 500/510 uses 30 MEMS microphones to calculate and visualize ultrasound image. In addition, the device makes inaudible ultrasound audible

Advantage over the traditional leak detectors: Visual representation of the leakage in the live image, even in noisy environments during production

To determine the leakage rate, the user aims the laser directly at the leakage. Leakage, laser and red circle must be on top of each other in the image. Then, the leakage rate in l/min or cfm and the costs in euro/year are determined exactly. The distance is measured automatically.

CS Leak Reporter

CS Leak Reporter

 N/A Use the reporting software to quickly and efficiently produce an ISO 50001 report

CS Leak Reporter - cloud solution

Ideal for leak detection service providers and for companies/ major corporations with multiple locations.
  • Each "user" in the leakage search team can be assigned a role (e.g. leakage search, leakage repair, monitoring, checking for success)
  • Access rights to individual or all projects can be assigned individually to each user
  • The browser-based software ensures a common database in real time and paperless documentation
CS Leak Reporter - PC solution

Creates detailed ISO 50001 reports. Provides an illustrated overview of the leaks found and their savings potential. Measures for elimination, including status display, can be defined for every leak
License for two computers

Consisting of

Consisting of

 N/A Item # - 0560 0206

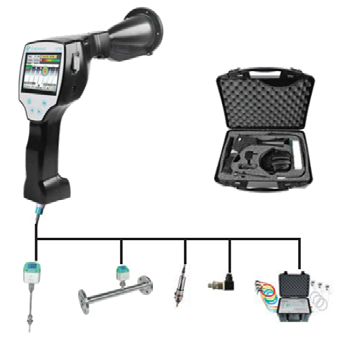

Description - LD 510 leak detector with UltraCam, integrated camera, 30 ultrasonic microphones for visualization of the leakage on the screen, incl. 100 leak tags

Item # - 0554 0106
Description - Transport case

Item # - 0554 0104
Description - Sound-proof headset

Item # - 0530 0104
Description - Focus tube with focus tip

Item # - 0554 0009
Description - AC adapter plug

Item # - 020001402
Description - Spiral cable for connecting the ultrasonic sensor, length 2m (extended)

Item # - 020001795
Description - Holster with shoulder strap for LD 500/510

Additional Information

Additional Information

 N/A
  • Enormous time saving compared to traditional leak detectors
  • 30 MEMS microphones create the image of the leaks
  • Brightness sensor activates LEDs in dark surroundings
  • Available as upgrade for LD 500/510
  • NEW: Multi-user capable through cloud solution
  • NEW: Unique laser distance measurement for automatic cost determination (e.g. 6' 11")
  • Find out your leakage rate (l/min or cfm) and potential savings ($ /year). Currency can be set as required
  • Photograph leaking parts
  • Paperless documentation. Enter everything into the device on site: Define the leakage location as well as the remedial measures and spare parts required
  • Create a report in accordance with ISO 50001
  • Fatigue-free work - ergonomic, one-hand operation - low weight

Accessories

Accessories

 N/A Headset
The noise-proof headset enables leak detection even in an extremely loud environment. The ambient noise is faded out, and the leakage (inaudible ultrasonic sound) is transformed into an audible signal

Holster with shoulder strap
For the LD 500/510, enables ergonomic and safe work

Focus tube with focus tip
For pinpoint detection of the smallest leaks in confined spaces

Professional Accessory

Professional Accessory

 N/A Parabolic Mirror

By focusing the ultrasonic waves in the parabolic mirror, even the smallest leaks of 0.8 l/min (approx. Euro 8 p.a.) can be located with pinpoint precision (± 15 cm) at a distance of up to 10 to 15 m.
The shape of the parabolic mirror ensures that only ultrasonic waves of the targeted leak are evaluated. Background noise is reduced to a minimum.

Note

Note

 N/A Leakage costs in one year, with 24-hour operation 365 days a year, calculated with compressed air costs of 1.9 ct/Nm³.
