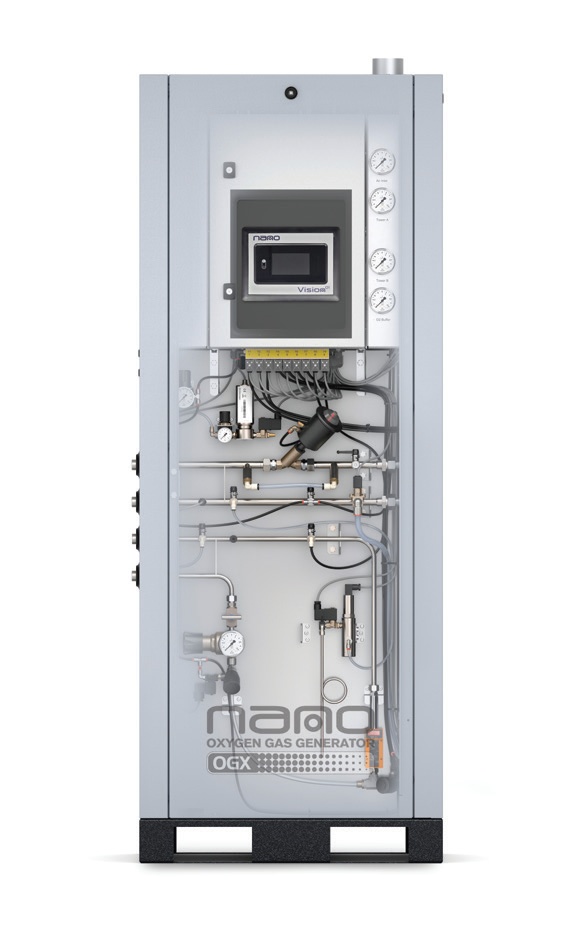

- OGX Oxygen Gas Generators are designed to produce high-purity oxygen in the 90-95% oxygen concentration range using pressure swing adsorption technology.
- Customizable and adjustable to specific oxygen purity and flow rate requirements.
- With low operational and maintenance costs, coupled with a long lifespan and durability, OGX Oxygen Gas Generators are a cost-effective solution over the long term.
- Incorporates energy-saving technologies to optimize the oxygen production process during variable demand.
- Eliminates the need for transportation and storage of oxygen cylinders, reducing logistical complexities and safety risks associated with handling high-pressure gas cylinders.
Unit of Measure
Specifications
Brands |
N/A nano |
Outlet Flow at 90 Percent (%) Oxygen Purity |
N/A 15.5 scfm |
Outlet Flow at 93 Percent (%) Oxygen Purity |
N/A 14.2 scfm |
Outlet Flow at 95 Percent (%) Oxygen Purity |
N/A 11.9 scfm |
Note for Oxygen Purity at Outlet |
N/A At 87 psig inlet pressure and 68 ºF inlet temperature. For outlet flow at all other conditions. |
Dimension A |
N/A 56 in |
Dimension B |
N/A 38 in |
Dimension C |
N/A 79 in |
Approximate Weight |
N/A 2500 lb |
Design Operating Pressure Range |
N/A 65 to 145 psig |
Standard Design Operating Temperature Range |
N/A 41 to 122 ºF |
Optional Design Operating Temperature Range |
N/A 14 to 122 ºF |
Recommended Operating Temperature Range |
N/A 41 to 95 ºF |
Maximum Inlet Particulate |
N/A 0.1 µ |
Maximum Temperature at Inlet Pressure Dew Point (PDP) |
N/A 45 ºF |
Recommended Temperature at Inlet Pressure Dew Point (PDP) |
N/A 37.4 ºF |
Note for Recommended Temperature at Inlet Pressure Dew Point (PDP) |
N/A -4 ºF PDP with low inlet temperature option |
Maximum Inlet Oil Content |
N/A 0.01 ppm |
Note for Maximum Inlet Oil Content |
N/A Including oil vapor |
Supply Voltage |
N/A 115 to 230 V |
Phase |
N/A 1 |
Frequency |
N/A 50 to 60 Hz |
