Measures ambient conditions in the room - absolute pressure, room temperature, humidity

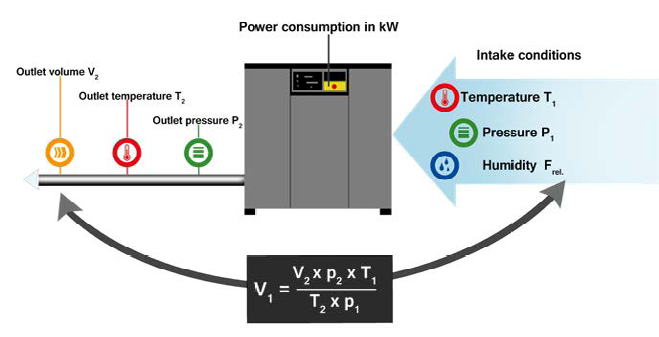

The delivery rate of compressors depends on the intake air.

The installation site and the climatic conditions must already be taken into account when designing compressed air stations.

Large temperature fluctuations, e.g. between day and night, lead to uneven compressed air flow.
Unit of Measure

Financing

Approve Payments

 N/A Finance with Approve Payments

Specifications

Temperature Measuring Range

 N/A -68 to +140 ºF

Accuracy (±) at 0 to 140 Degree Fahrenheit (ºF) Temperature

 N/A 1.0 k

Accuracy (±) at -68 to 0 Degree Fahrenheit (ºF) Temperature

 N/A 1.25 k

Relative Humidity Measuring Range

 N/A 5 to 95 % rF

Accuracy (±) Relative Humidity Measuring Range

 N/A 3 %

Absolute Pressure Measuring Range (abs)

 N/A 300 to 1,100 hPa

Protection Class

 N/A IP 65

Direct Current (DC) Supply Voltage

 N/A 24 V

Direct Current (DC) Supply Voltage Via Safety Extra Low Voltage (SELV) Supply

 N/A 18 to 30 V

Power over Ethernet

 N/A IEEE802.3af: Class 2 (3.84W - 6.49W)

Operating Temperature

 N/A -68 to +140 ºF

Ambient Temperature

 N/A -68 to +140 ºF

Storage Temperature

 N/A -104 to +176 ºF

Readable via Modbus

 N/A
  • Absolute pressure [hPa, mbar, bar, psi,...]
  • Dew point [ºCtd, ºFtd]
  • Temperature [ºC, ºF],
  • Relative humidity [ %RH], abs. humidity [g/m³]

Special Features

Special Features

 N/A
  • 3 in 1 sensor: Absolute pressure, temperature and humidity in the room
  • Modbus-RTU, Ethernet or M-Bus interface
  • Alarm relay - limit value adjustable via buttons (max 60 VDC, 0.5 A)
  • Optional: 2 x 4...20 mA analog output, 2x alarm relays, e.g., for dew point and temperature

Applications

Applications

 N/A
  • Monitoring the intake air of compressed air stations
  • Monitoring of room air e.g. cold rooms, storage rooms or clean rooms
