Republic offers a complete line of centrifugal blowers for vacuum or compressed air applications. Centrifugal blowers provide dry, clean, oil-free air and require low energy consumption. Unlike compressed air systems, this series is safe to run at low pressure, and allows for increased production speeds or levels.

The RB2000 is the most versatile of the centrifugal blower series. The blower comes with ceramic hybrid bearings, rotatable outlet discharge, easy to remove stainless steel bearing housing assembly, and zinc plated steel motor pulley.
Unit of Measure

Financing

Approve Payments

 N/A Finance with Approve Payments

Specifications

Model

 N/A RB2000

Frequency

 N/A 50 Hz60 Hz

Power

 N/A 25 hp

Motor Frame Size

 N/A 284TSC

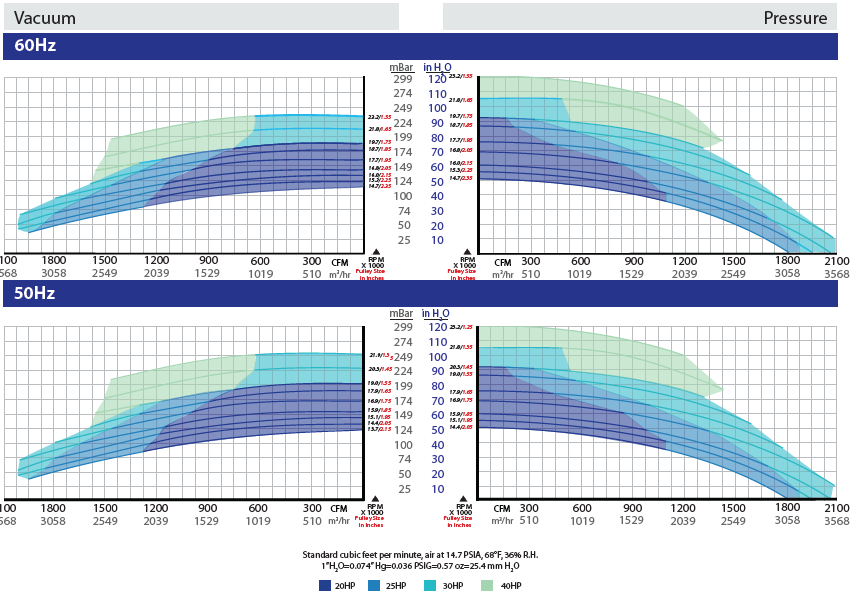

Maximum Flow at 50 Hertz (Hz) Frequency

 N/A 1950 ft³/min3313 m³/h

Maximum Flow at 60 Hertz (Hz) Frequency

 N/A 1950 ft³/min3313 m³/h

Maximum Vacuum at 50 Hertz (Hz) Frequency

 N/A 75 in. H2O187 mbar

Maximum Vacuum at 60 Hertz (Hz) Frequency

 N/A 72 in. H2O179 mbar

Maximum Pressure at 50 Hertz (Hz) Frequency

 N/A 93 in. H2O232 mbar

Maximum Pressure at 60 Hertz (Hz) Frequency

 N/A 93 in. H2O232 mbar

Sound Level with Enclosure

 N/A 82 dB

Sound Level without Enclosure

 N/A 96 dB

Weight

 N/A 440 lb200 kg

Retro Kit Weight

 N/A 79 lb36 kg

Warranty

 N/A 1 year

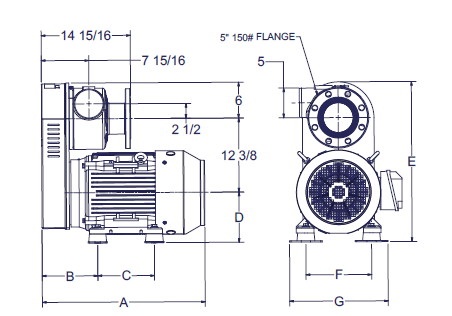

Dimensions

Dimension A

 N/A 27.31 in694 mm

Dimension B

 N/A 9.31 in236 mm

Dimension C

 N/A 9.5 in241 mm

Dimension D

 N/A 8.50 in216 mm

Dimension E

 N/A 26.81 in681 mm

Dimension F

 N/A 11.00 in279 mm

Dimension G

 N/A 16.50 in419 mm

Available Options

N/A Republic Centrifugal Blowers are made to order, and can be customized to fit almost any application. Many common options and accessories are listed below. For additional options, please contact Republic or your local distributor.

Advantages

Advantages

 N/A
  • 20-40 Horsepower - up to 23,200 rpm
  • 16 Groove belt for long life
  • Most versatile blower
  • Ceramic hybrid bearings
  • Multi-lip seals on both ends of the shaft
  • Easy to remove bearing/impeller housing for quick repair
  • Blower outlet discharge is rotatable
  • Precision balanced shaft/impeller assemblies
  • Stainless steel blower pulley, zinc plated steel motor pulley, aluminum blower housing
  • 6061 T6 aluminum impeller
  • Bearing housing is steel construction for extra rigidity
  • Operational with all types of motors- washdown, explosion proof, high efficiency and hydraulic
  • 100% Operational performance and vibration tested

Options

N/A Hard anodized bearing housing assembly Inlet and outlet flanges Water-cooled blower

Accessories

N/A Enclosures for noise control Exhaust silencer Starter panel Variable frequency drive
