Specifications

Model

 N/A RBX-400

Frequency

 N/A 50 Hz

Power

 N/A 60 hp

Maximum Flow Rate

 N/A 6,278 m³/h

Maximum Vacuum

 N/A -257 mbar

Maximum Pressure

 N/A 344 mbar

Sound Level

 N/A 92 dB

Weight

 N/A 545 kg

Retro Kit Weight

 N/A 74 kg

Certifications

 N/A European Conformity (CE) International Organization for Standardization (ISO)

Warranty

 N/A 2 year

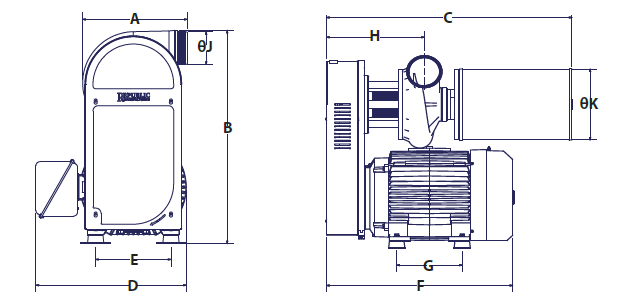

Dimensions

Dimension A

 N/A 494 mm

Dimension B

 N/A 1030 mm

Dimension C

 N/A 1167 mm

Dimension D

 N/A 711 mm

Dimension E

 N/A 356 mm

Dimension F

 N/A 883 mm

Dimension G

 N/A 311 mm

Dimension H

 N/A 460 mm

Diameter J

 N/A 154 mm

Diameter K

 N/A 370 mm

Advantages

Advantages

 N/A
  • 80% peak efficiency allows for lower power consumption, smaller motors, and less cost
  • Longevity - 7-8 times more bearing life
  • Easy to replace bearing housing assembly
  • Quick-release filter
  • Rotatable blower discharge
  • Precision balanced shaft/impeller assemblies
  • Ceramic hybrid bearings
  • Two-piece labyrinth seals designed and manufactured specifically for Republic RBX blowers
  • Stainless steel blower pulley, zinc plated steel motor pulley, aluminum blower housing
  • 20 Groove belt for long life
  • Made in the U.S.A.

Options

N/A ANSI flanges on inlet/outlet (with or without filter) Chemically resistant packages Installed thermocouples to monitor bearing temperature Optional discharge flange Tube adapter (with or without filter)

Optional Accessories

N/A Enclosures for noise control Exhaust silencer Starter panel/soft start Variable frequency drive Ball valves/butterfly valves Gauges

Note

N/A All measurements are ±10%
