Republic offers the DVT series of dry-running rotary vane compressors which are ideally suited for oil free applications. They are single stage, air-cooled and direct driven for continuous operation. These rugged pumps are simple to install and easy to service and maintain. The smaller pumps come with a motor integrated, while the larger pumps are available with or without motor. These pumps have a displacement ranging from 9 to 95 CFM (16 to 164 m3/hr), a maximum vacuum of 17.7 in. Hg and maximum pressure of 8.7 psig.
Unit of Measure

Financing

Approve Payments

 N/A Finance with Approve Payments

Specifications

Model

 N/A DVT

Displacement

 N/A 9 to 95 ft³/min16 to 164 m³/h

Maximum Ultimate Vacuum

 N/A 17.7 inHg

Maximum Pressure

 N/A 8.7 psig

Noise Level for 50 Hertz (Hz) Frequency

 N/A 68 dB

Noise Level for 60 Hertz (Hz) Frequency

 N/A 71 dB

Weight

 N/A 100 lb45 kg

Motor Output at 50 Hertz (Hz) Frequency and 3 Phase

 N/A 1.85 kW

Motor Output at 60 Hertz (Hz) Frequency and 3 Phase

 N/A 2.95 hp

Voltage at 50 Hertz (Hz) Frequency and 3 Phase

 N/A 195 to 255 V330 to 440 V

Voltage at 60 Hertz (Hz) Frequency and 3 Phase

 N/A 190 to 290 V330 to 550 V

Motor Output at 50 Hertz (Hz) Frequency and 1 Phase

 N/A 1.85 kW

Motor Output at 60 Hertz (Hz) Frequency and 1 Phase

 N/A 2.9 hp

Voltage at 50 Hertz (Hz) Frequency and 1 Phase

 N/A 230 V

Voltage at 60 Hertz (Hz) Frequency and 1 Phase

 N/A 230 V

Speed at 50 Hertz (Hz) Frequency

 N/A 1420 rpm

Speed at 60 Hertz (Hz) Frequency

 N/A 1700 rpm

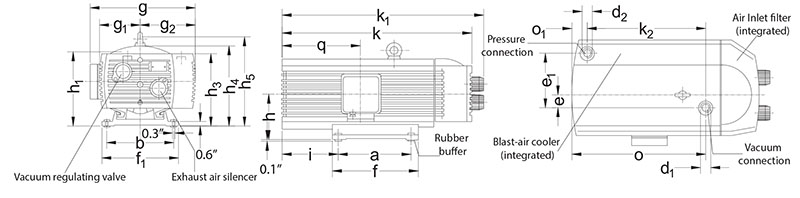

Dimensions

Dimension a

 N/A 8.7 in220 mm

Dimension b

 N/A 7.8 in198 mm

Dimension d1

 N/A 0.75 in

Dimension d2

 N/A 0.75 in

Dimension e

 N/A 1.6 in40 mm

Dimension e1

 N/A 6.7 in170 mm

Dimension f

 N/A 10.3 in261 mm

Dimension f1

 N/A 9.4 in240 mm

Dimension g

 N/A 12.6 in321 mm

Dimension g1

 N/A 5.0 in126 mm

Dimension g2

 N/A 6.9 in174 mm

Dimension h

 N/A 5.5 in140 mm

Dimension h1

 N/A 9.0 in229 mm

Dimension h3

 N/A 8.8 in224 mm

Dimension h4

 N/A 9.8 in249 mm

Dimension h5

 N/A 11.6 in295 mm

Dimension i

 N/A 7.0 in178 mm

Dimension k

 N/A 23.1 in586 mm

Dimension k1

 N/A 24.3 in617 mm

Dimension k2

 N/A 14.3 in362 mm

Dimension o

 N/A 16.3 in414 mm

Dimension o1

 N/A 2.2 in55 mm

Dimension q

 N/A 9.5 in241 mm

Optional Accessories

N/A Inlet filter Inlet check valve Vacuum gauge Motor starter Control panel PLC

Note

N/A All measurements are ± 10%
