Republic offers the VRT series of dry-running rotary vane vacuum pumps and are ideally suited for oil free applications. They are single stage, air-cooled and direct driven for continuous operation. The design is one of the most reliable and simplest vacuum pumps available. These rugged pumps are simple to install and easy to service and maintain. The smaller pumps come with a motor integrated, while the larger pumps are available with or without motor. These pumps have a displacement ranging from 5 to 176 CFM (10 to 300 m3/hr) and a maximum vacuum of 150 torr.
The VRT series is used in a variety of industries such as vacuum lifting, woodworking, environmental applications electronics, packaging, conveying, robotics, medical vacuum/central vacuum, and printing.
The VRT series is used in a variety of industries such as vacuum lifting, woodworking, environmental applications electronics, packaging, conveying, robotics, medical vacuum/central vacuum, and printing.
Unit of Measure
Specifications
Model |
N/A VRT |

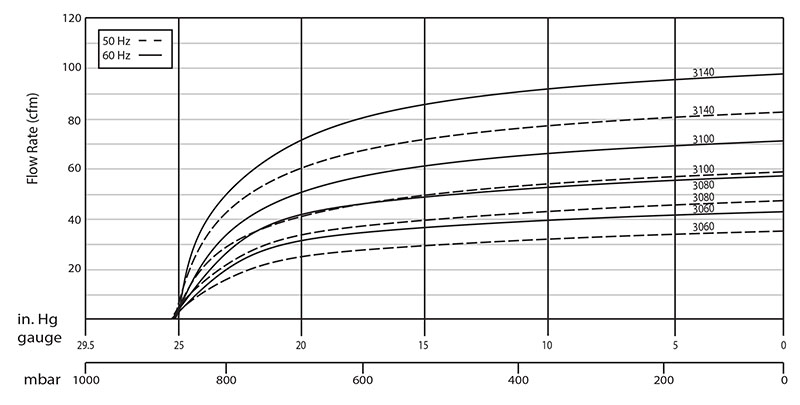

Displacement for 50 Hertz (Hz) Frequency |
N/A 59 ft³/min100 m³/h |
Displacement for 60 Hertz (Hz) Frequency |
N/A 71 ft³/min120 m³/h |
Maximum Ultimate Vacuum |
N/A 25.5 inHg112.5 Torr150 bar |
Noise Level for 50 Hertz (Hz) Frequency |
N/A 75 dB |
Noise Level for 60 Hertz (Hz) Frequency |
N/A 77 dB |
Weight |
N/A 232 lb105 kg |
Voltage at 50 Hertz (Hz) Frequency and 3 Phase |
N/A 230 V400 V |
Voltage at 60 Hertz (Hz) Frequency and 3 Phase |
N/A 208 to 230 V460 V |
Motor Output at 50 Hertz (Hz) Frequency |
N/A 3.0 kW |
Motor Output at 60 Hertz (Hz) Frequency |
N/A 4.8 hp |
Speed at 50 Hertz (Hz) Frequency |
N/A 1420 rpm |
Speed at 60 Hertz (Hz) Frequency |
N/A 1700 rpm |

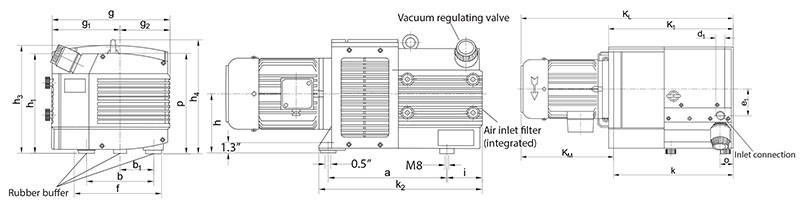

Dimensions
Dimension a |
N/A 16.6 in422 mm |
Dimension b |
N/A 9.6 in245 mm |
Dimension b1 |
N/A 5.3 in134 mm |
Dimension d1 |
N/A 1.5 in |
Dimension e1 |
N/A 3.7 in95 mm |
Dimension f |
N/A 11.6 in295 mm |
Dimension g |
N/A 18.5 in470 mm |
Dimension g1 |
N/A 9.2 in233 mm |
Dimension g2 |
N/A 8.7 in222 mm |
Dimension h |
N/A 6.4 in162 mm |
Dimension h1 |
N/A 9.3 in235 mm |
Dimension h3 |
N/A 14.8 in376 mm |
Dimension h4 |
N/A 15.0 in382 mm |
Dimension i |
N/A 5.8 in147 mm |
Dimension k |
N/A 20.8 in528 mm |
Dimension k1 |
N/A 21.4 in543 mm |
Dimension k2 |
N/A 22.4 in570 mm |
Dimension kl |
N/A 36.4 in926 mm |
Dimension km |
N/A 15.7 in398 mm |
Dimension o |
N/A 0.9 in24 mm |
Dimension p |
N/A 13.2 in336 mm |
