Republic offers the VRT series of dry-running rotary vane vacuum pumps and are ideally suited for oil free applications. They are single stage, air-cooled and direct driven for continuous operation. The design is one of the most reliable and simplest vacuum pumps available. These rugged pumps are simple to install and easy to service and maintain. The smaller pumps come with a motor integrated, while the larger pumps are available with or without motor. These pumps have a displacement ranging from 5 to 177 CFM (10 to 300 m3/hr) and a maximum vacuum of 150 torr.
The VRT series is used in a variety of industries such as vacuum lifting, woodworking, environmental applications electronics, packaging, conveying, robotics, medical vacuum/central vacuum, and printing.
The VRT series is used in a variety of industries such as vacuum lifting, woodworking, environmental applications electronics, packaging, conveying, robotics, medical vacuum/central vacuum, and printing.
Unit of Measure
Specifications
Model |
N/A VRT |
Displacement for 50 Hertz (Hz) Frequency |
N/A 147 ft³/min250 m³/h |
Displacement for 60 Hertz (Hz) Frequency |
N/A 177 ft³/min300 m³/h |
Maximum Ultimate Vacuum |
N/A 23.6 inHg150 Torr200 bar |
Noise Level for 50 Hertz (Hz) Frequency |
N/A 81 dB |
Noise Level for 60 Hertz (Hz) Frequency |
N/A 81 dB |
Weight |
N/A 688 lb312 kg |
Voltage at 50 Hertz (Hz) Frequency and 3 Phase |
N/A 230 V400 V |
Voltage at 60 Hertz (Hz) Frequency and 3 Phase |
N/A 208 to 230 V460 V |
Motor Output at 50 Hertz (Hz) Frequency |
N/A 5.5 kW |
Motor Output at 60 Hertz (Hz) Frequency |
N/A 8.9 hp |
Speed at 50 Hertz (Hz) Frequency |
N/A 960 rpm |
Speed at 60 Hertz (Hz) Frequency |
N/A 1150 rpm |

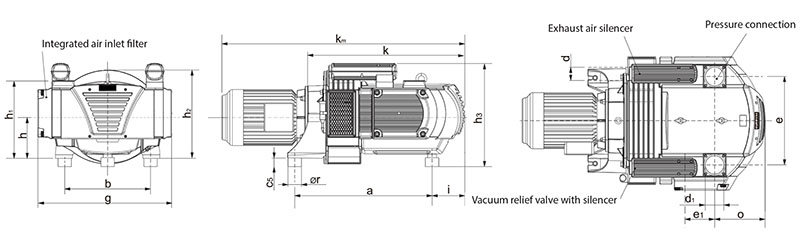

Dimensions
Dimension a |
N/A 25.4 in645 mm |
Dimension b |
N/A 15 in380 mm |
Dimension c5 |
N/A 1.6 in40 mm |
Dimension d |
N/A 2.0 in |
Dimension d1 |
N/A 2.5 in |
Dimension e |
N/A 16.7 in423 mm |
Dimension e1 |
N/A 8.5 in216 mm |
Dimension g |
N/A 24.1 in612 mm |
Dimension h |
N/A 8.9 in225 mm |
Dimension h1 |
N/A 15.3 in389 mm |
Dimension h2 |
N/A 16.8 in426 mm |
Dimension h3 |
N/A 19.5 in494 mm |
Dimension i |
N/A 4.9 in125 mm |
Dimension k |
N/A 26.9 in684 mm |
Dimension km |
N/A 43 in1092 mm |
Dimension o |
N/A 6.8 in172 mm |
Dimension s |
N/A M 10 |
Dimension r |
N/A 2.0 in |
