Republic offers the VRT series of dry-running rotary vane combination pumps and are ideally suited for oil free applications. They are single stage, air-cooled and direct driven for continuous operation. The design is one of the most reliable and simplest vacuum pumps available. These rugged pumps are simple to install and easy to service and maintain. The smaller pumps come with a motor integrated, while the larger pumps are available with or without motor. These pumps have a displacement ranging from 4.7 to 176 CFM (8 to 300 m3/hr) and a maximum vacuum of 150 torr.
The VRT series is used in a variety of industries such as vacuum lifting, woodworking, environmental applications electronics, packaging, conveying, robotics, medical vacuum/central vacuum, and printing.
The VRT series is used in a variety of industries such as vacuum lifting, woodworking, environmental applications electronics, packaging, conveying, robotics, medical vacuum/central vacuum, and printing.
Unit of Measure
Specifications
Model |
N/A VRT |
Displacement for 50 Hertz (Hz) Frequency |
N/A 4.7 ft³/min8.0 m³/h |
Displacement for 60 Hertz (Hz) Frequency |
N/A 5.4 ft³/min9.2 m³/h |
Maximum Ultimate Vacuum |
N/A 25.1 inHg112.5 Torr150 bar |
Noise Level for 50 Hertz (Hz) Frequency |
N/A 58 dB |
Noise Level for 60 Hertz (Hz) Frequency |
N/A 61 dB |
Weight |
N/A 29 lb13 kg |
Motor Output at 50 Hertz (Hz) Frequency and 3 Phase |
N/A 0.37 kW |
Motor Output at 60 Hertz (Hz) Frequency and 3 Phase |
N/A 0.59 hp |
Voltage at 50 Hertz (Hz) Frequency and 3 Phase |
N/A 175 to 260 V300 to 450 V |
Voltage at 60 Hertz (Hz) Frequency and 3 Phase |
N/A 202 to 300 V350 to 520 V |
Motor Output at 50 Hertz (Hz) Frequency and 1 Phase |
N/A 0.37 kW |
Motor Output at 60 Hertz (Hz) Frequency and 1 Phase |
N/A 0.59 hp |
Voltage at 50 Hertz (Hz) Frequency and 1 Phase |
N/A 230 V |
Voltage at 60 Hertz (Hz) Frequency and 1 Phase |
N/A 230 V |
Speed at 50 Hertz (Hz) Frequency and 3 Phase |
N/A 1420 rpm |
Speed at 60 Hertz (Hz) Frequency and 3 Phase |
N/A 1700 rpm |
Speed at 50 Hertz (Hz) Frequency and 1 Phase |
N/A 1380 rpm |
Speed at 60 Hertz (Hz) Frequency and 1 Phase |
N/A 1630 rpm |

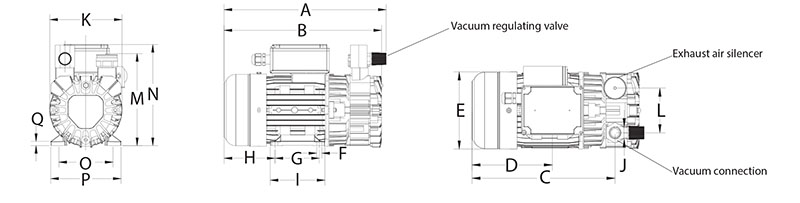

Dimensions
Dimension A |
N/A 12.36 in314 mm |
Dimension B |
N/A 11.89 in302 mm |
Dimension C |
N/A 10.35 in263 mm |
Dimension D |
N/A 6.34 in161 mm |
Dimension E |
N/A 5.51 in140 mm |
Dimension F |
N/A 0.30 in7.5 mm |
Dimension G |
N/A 3.56 in90.5 mm |
Dimension H |
N/A 3.72 in94.5 mm |
Dimension I |
N/A 4.11 in104.5 mm |
Dimension J |
N/A 1.00 in24.5 mm |
Dimension K |
N/A 5.22 in132.5 mm |
Dimension L |
N/A 3.23 in82 mm |
Dimension M |
N/A 6.61 in168 mm |
Dimension N |
N/A 6.95 in176.5 mm |
Dimension O |
N/A 4.41 in112 mm |
Dimension P |
N/A 5.18 in131.5 mm |
Dimension Q |
N/A 0.39 in10 mm |
