Specifications

Model

 N/A RXA-16

Phase

 N/A 3

Displacement

 N/A 11 ft³/min

Ultimate Continuous Vacuum

 N/A 29.86 inHg1.5 Torr

Motor Output

 N/A 1 hp

Motor Speed

 N/A 1800 rpm

Voltage

 N/A 230 V460 V

Noise Level

 N/A 60 dBA

Approximate Weight

 N/A 48 lb

Oil Capacity

 N/A 0.5 L

Inlet/Outlet Connection Size

 N/A 0.50 in

Inlet/Outlet Connections Type

 N/A National Pipe Thread (NPT)

Certifications

 N/A Canadian Underwriters Laboratories (cUL) European Conformity (CE) German Motor Vehicle Inspection Association (DEKRA) International Efficiency Class 3 (IE3)

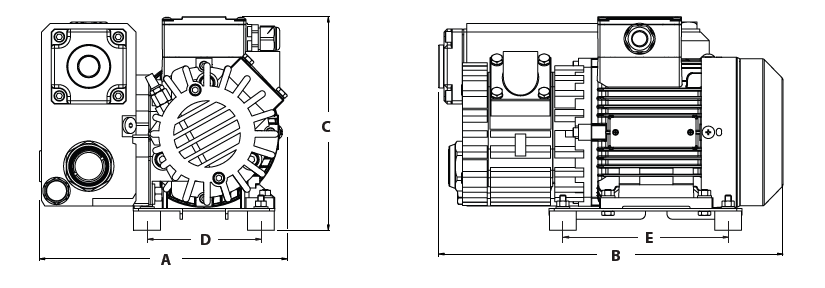

Dimensions

Dimension A

 N/A 9.1 in

Dimension B

 N/A 12.6 in

Dimension C

 N/A 7.8 in

Dimension D

 N/A 4.2 in

Dimension E

 N/A 6.1 in

Features

N/A

  • Single stage, direct-driven
  • Air-cooled, no water required
  • Simple installation
  • Low noise levels
  • Compact design
  • Integral exhaust filter, oil free discharge air
  • Includes pressure gauge

Applications

N/A

  • Meat packaging
  • Food processing
  • Thermoforming
  • Composites
  • Medical
  • Laboratory
  • Vacuum cooling
  • Robotics
  • Degassing
  • Autoclaves

Optional Accessories

N/A

  • Pre-Assembled Vacuum Kit Available (KVRXA-16): Includes all plumbing, filtration, check-valves, regulating valves, and gauges required for quick installation and easy maintenance.

Note

N/A Please contact the factory for precise dimensions.
All measurements are ±10%. Standard motor is Class 1 Div 2.
