Specifications

Model

 N/A RCV-300

Frequency

 N/A 60 Hz

Displacement

 N/A 203 ft³/min

Ultimate Continuous Vacuum

 N/A 24.0 inHg150 Torr

Motor Output

 N/A 10 hp

Motor Speed

 N/A 3450 rpm

Voltage

 N/A 208 to 230 V460 V

Motor Amperage

 N/A 18.6 to 17.6 A8.8 A

Noise Level

 N/A 82 dBA

Approximate Weight

 N/A 618 lb

Inlet Size

 N/A 2 in

Inlet Type

 N/A Male National Pipe Thread (MNPT)

Discharge Size

 N/A 2.5 in

Discharge Type

 N/A Female National Pipe Tapered (FNPT)

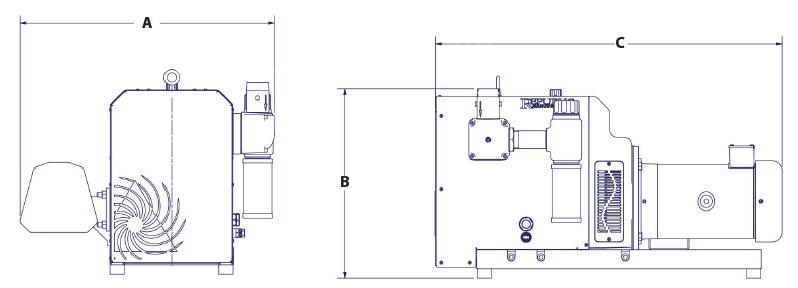

Dimensions

Dimension A

 N/A 26.63 in

Dimension B

 N/A 20.00 in

Dimension C

 N/A 38.63 in

Features

N/A

  • Single stage, direct-driven
  • Continuous, contactless, oil-free operation
  • Energy efficient for substantial savings
  • Minimal downtime
  • Air-cooled
  • Made in the U.S.A.
  • Simple installation
  • Virtually maintenance-free
  • Low noise levels
  • Upgraded bearings
  • Top-performing Viton™ seals

Applications

N/A Any oil-free application including:

  • Forming
  • Dehydration
  • Packaging
  • Conveying
  • Printing
  • Environmental
  • Medical
  • CNC vacuum hold down

Optional Accessories

N/A

  • Inlet filter
  • Vacuum gauge
  • Motor starter
  • Control panel
  • Central systems supporting 1-6 pumps

Note

N/A All measurements are ±10%
