Specifications

Model

 N/A RCV-402

Phase

 N/A 3

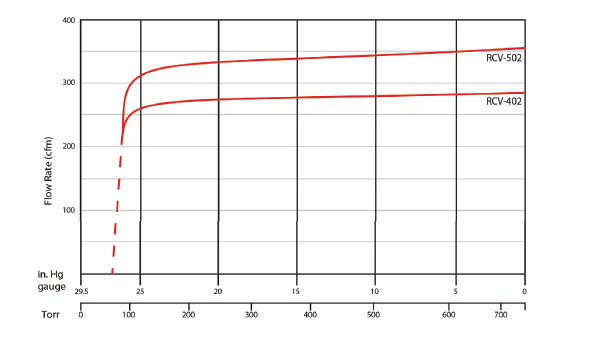

Displacement

 N/A 283 ft³/min

Ultimate Continuous Vacuum

 N/A 25.52 inHg112.51 Torr

Motor Output

 N/A 15.0 hp

Motor Speed

 N/A 3450 rpm

Voltage

 N/A 230 V460 V

Full Load Current

 N/A 17.4 A34.8 A

Noise Level

 N/A 78 dBA

Approximate Weight

 N/A 694 lb

Gear Oil Amount

 N/A 1.5 L

Inlet Size

 N/A 3.00 in

Inlet Type

 N/A National Pipe Thread (NPT)

Outlet Size

 N/A 2.50 in

Outlet Type

 N/A National Pipe Thread (NPT)

Discharge Type

 N/A National Pipe Thread (NPT)

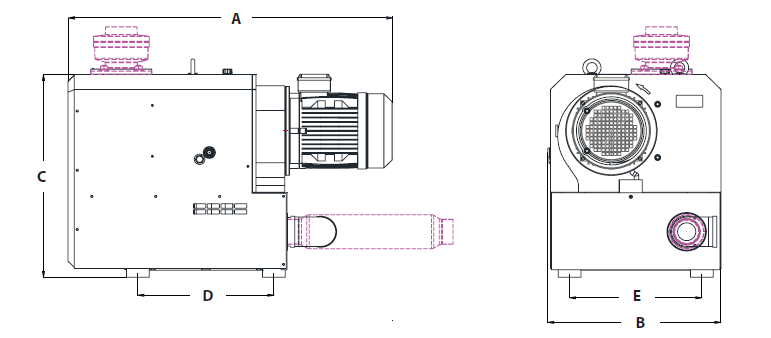

Dimensions

Dimension A

 N/A 38.6 in

Dimension B

 N/A 19.7 in

Dimension C

 N/A 24.00 in

Dimension D

 N/A 17.6 in

Dimension E

 N/A 17.1 in

Features

N/A

  • Single stage, direct-driven
  • Continuous, contactless, oil-free operation
  • Energy efficient for substantial savings
  • Minimal downtime
  • Air-cooled, no water required
  • Simple installation
  • Virtually maintenance-free
  • Low noise levels
  • Integrated vacuum regulator
  • Integrated check valve

Applications

N/A

  • Forming
  • Dehydration
  • Packaging
  • Conveying
  • Printing
  • Environmental
  • Medical
  • Laboratory
  • CNC vacuum hold down
  • Pick & place
  • Plastics

Optional Accessories

N/A

  • Inlet filter
  • Vacuum gauge
  • Motor starter
  • Control panel
  • Central systems supporting 1-6 pumps
  • Pre-Assembled Vacuum Kit Available (KVRCV-402 & KVRCV-502):All plumbing, filtration, check-valves, regulating valves, and gauges required for quick installation and easy maintenance.

Note

N/A Please contact the factory for precise dimensions.
All measurements are ±10%. Standard motor is Class 1 Div 2.
